PRODUCTS
Innovative Shotlining provides high-quality shotcrete products and equipment, including Shotlining Mix, Fire Stop Mix, and advanced application tools like the Centrifugal Spray Caster and Robotic Arm.
Our innovative application tools and precisely mixed shotcrete blends are made to ensure the highest levels of longevity, efficiency, and cost-effectiveness. Our products provide excellent infrastructure protection and fireproofing solutions.
Special SHOTLINING Blends:

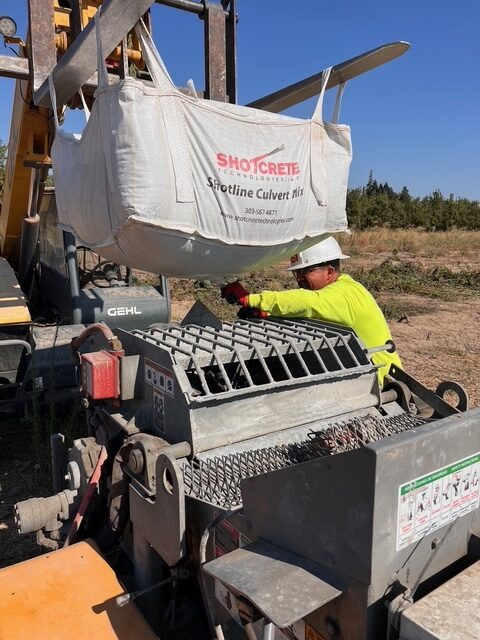

1. CULVERT & PIPE RELINING BLEND
Our special formulated Culvert Lining is made of all natural ingredients that have been NSF 61 certified, making it a perfect solution for culverts in the most sensitive wildlife areas!
With its fast cure time (less than 24 hrs), high strength (over 8000psi) and zero shrinkage this shotcrete blend will meet all your culvert needs!
2.HIGH STRENGTH SHOTCRETE FORMULA
Our proprietary shotcrete material is a specialized blend of cement, sand, and pozzolanic admixtures designed for superior pumpability, adhesion, and durability. The unique high-slump mix can be easily sprayed using our advanced application equipment.
Proprietary mix developed by our partner Shotcrete technologies, is prepared at a plant in southern California, to provide fast turnaround, less storage requirements, and optimal product quality control.
Available in 1000lb bags and 3000lb pallets.
Proprietary Equipment to apply the two Blends above:
1. For culvert and Pipe relining :

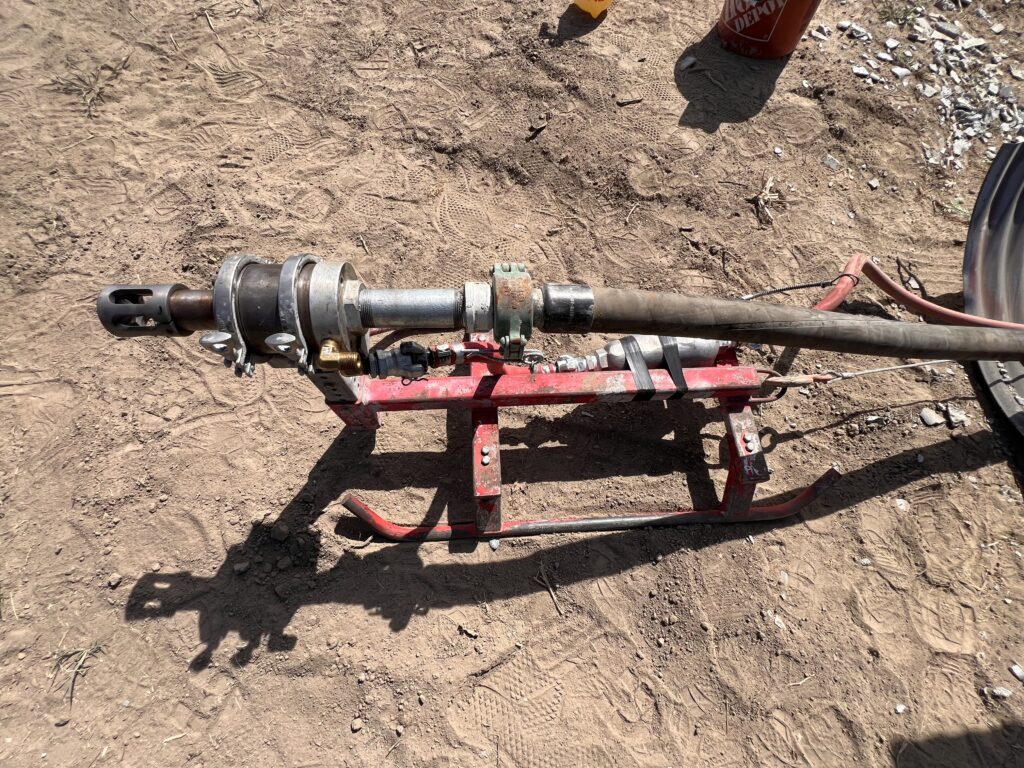

the Centrifugal SprayER.
Additionally designed to operate in a variety of environments, the centrifugal spray caster produces reliable results even under demanding circumstances. The user-friendly interface enables fast modifications, making it adaptable to various project requirements while preserving shotcrete applications of the highest quality.
2. FOr shotcrete applications:
the Robotic Arm.
Due to its adaptability, the Robotic Arm can work on projects of any size and can easily accommodate difficult angles and small areas. Its cutting-edge software integration guarantees accurate shotcrete application while reducing waste and maintaining the highest level of quality.
Our Shotlining
Job completed for Colorado DOT in 2004. 20 years later, no cracks!
The reduced need for formwork and the ability to work in difficult-to-reach areas reduces labor and equipment costs by over 50%.
In summary, shotcrete has evolved from a simple repair method to a versatile and widely used construction technology, offering numerous advantages in terms of speed, durability, and economics.
Shotlining accelerates project schedules significantly, reducing the time required for traditional invasive pipe replacement.
It provides higher compressive strength, lower permeability, and improved durability compared to conventional concrete. No more short term fractures and leaks, with a design life of up to 75 years.
Shotlining can be applied to vertical, overhead, and irregular surfaces, making it suitable for a wide range of applications.
Product Roadmap 2025
Fire Stop” Shotcrete is a sprayable, cementitious, inorganic fireproofing material with excellent adhesion to surfaces like concrete, steel, and wood. It releases no toxic fumes during application or fire. Enhanced with volcanic ash, “Fire Stop” outlasts ordinary concrete in quality and lifespan. This material meets or exceeds most international specifications for passive fireproofing in public transportation tunnels, infrastructure, and mines to control “hot” areas. In-house tests on 1/2” to 3/4” samples at 2400°F for 4 hours showed the back side never exceeded 800°F.
Previously challenging and not cost-effective, our new trailer, in the future, will enable us to efficiently handle short run projects of 100 feet or less. This innovation minimizes setup time and costs while reducing on-site labor.
The integration of computer vision and artificial intelligence technologies promises to revolutionize shotlining operations. These cutting-edge solutions will enable significant labor cost reductions of over 50% while providing exceptional real-time quality control validation
